Seamless • Modular Design • Magnetic Front Service •
Cost Effective • NRTL Listed

Seamless Scalability

Dimensional Display Systems modular ImageCell LED cabinets are ideal for any large scale LED display. With the best visibility, customizability and longevity, ImageCell screens are perfect for many different indoor applications ranging from video walls to digital signage. ImageCells are available in the popular 3mm and 5mm pitch arrangements and provide an excellent experience at almost any viewing distance.

Each ImageCell cabinet is NRTL listed to meet code requirements, and ships ready to operate right out of the box. Individual ImageCell cabinets are a native 16:9 wide-screen aspect ratio but can be combined in portrait or landscape position to achieve nearly any size display.

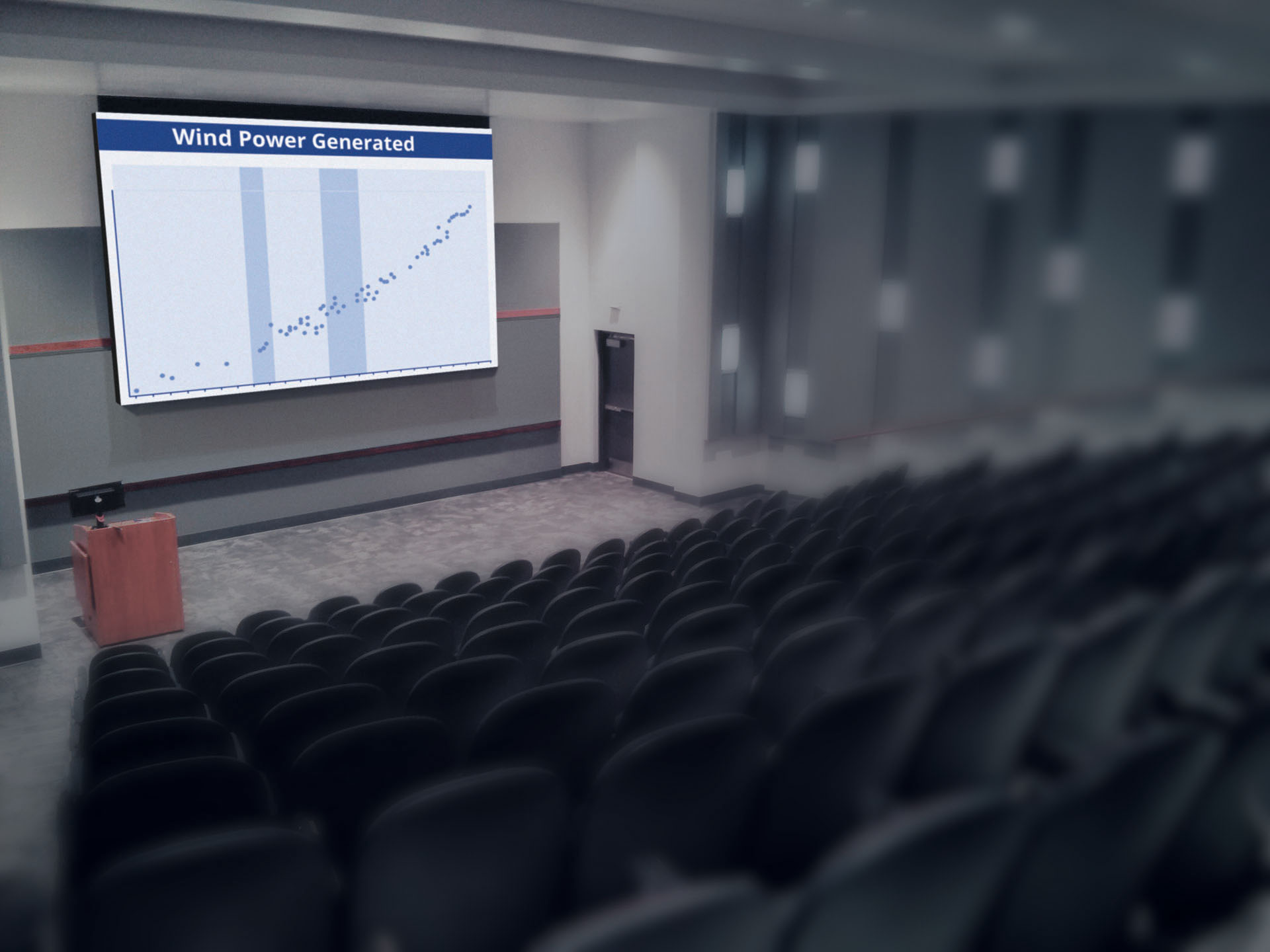

Educational facilities are a great fit for ImageCell indoor LED screens. LED will out-perform expensive projection systems in almost any environment.

Common Screen Sizes

P3 ImageCell

P5 ImageCell

Simple Installation

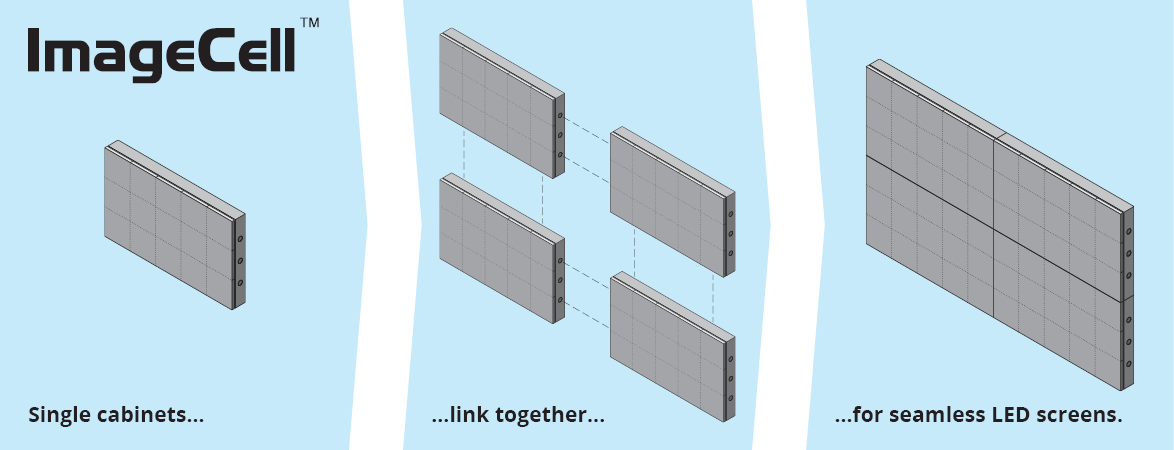

Displays are created by attaching ImageCells together and directly to a vertical support structure. This building-block approach allows for each ImageCell to be properly aligned to the others to form a complete display. A vented, black or brushed aluminum trim kit provided with each display surrounds the bottom and sides of the final display assembly, giving the display a sleek and monolithic appearance.

Easy Maintenance

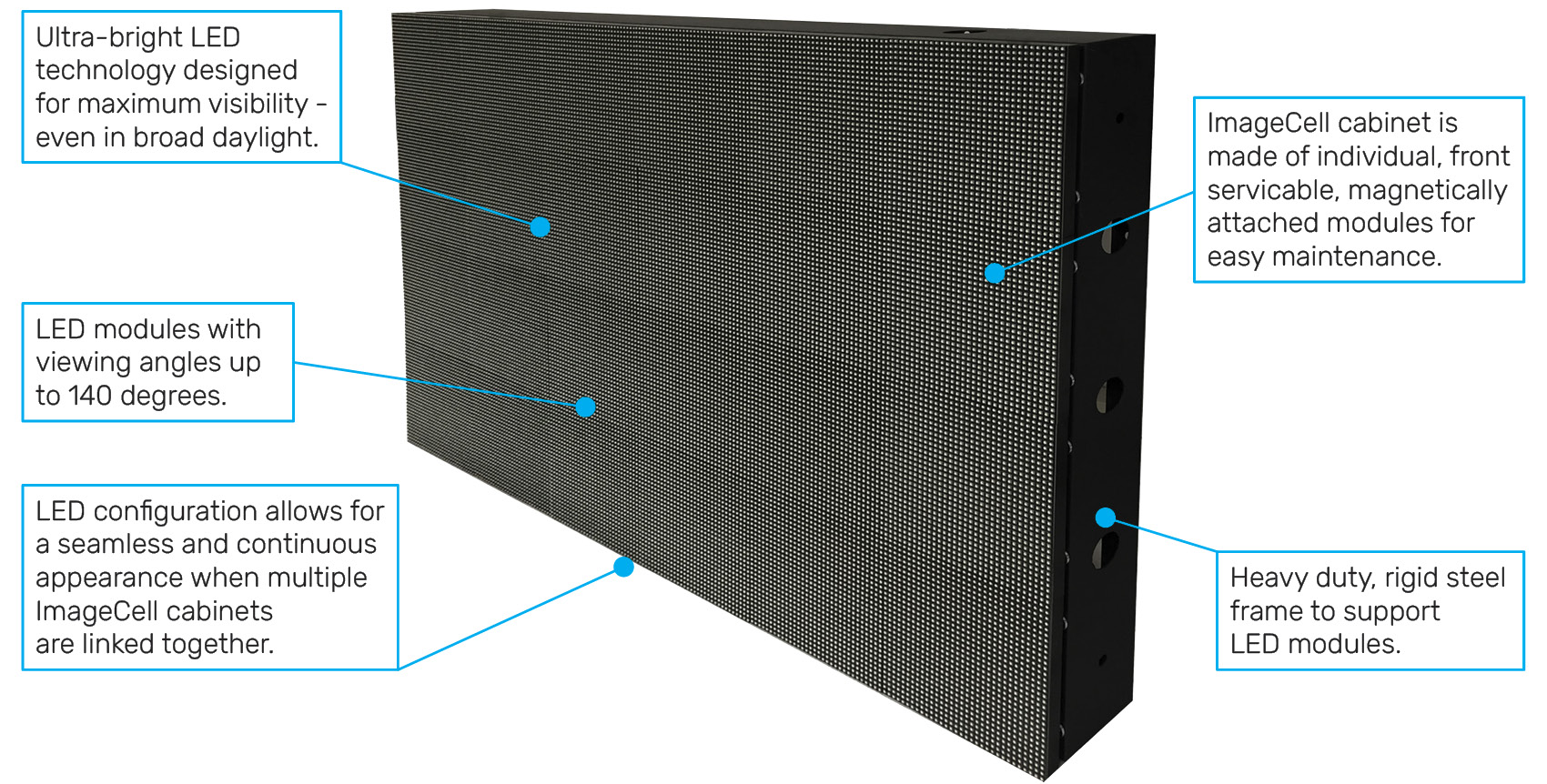

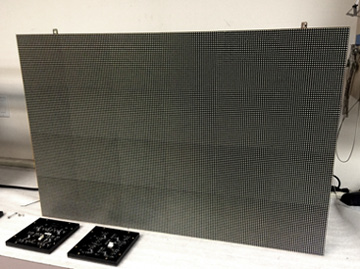

Each ImageCell cabinet is comprised of individual, front-serviceable LED tiles. The tiles are attached to the ridged steel cabinet using high-strength neodymium magnets. All internal wiring to the display tiles is made via reliable plug-in connectors, allowing individual tiles to be fully-serviced from the front, without requiring disassembly of cabinets or removal of the display from it’s wall-mounted position.

Specifications

P3 and P5 Pixel Pitch
ImageCell™ Modular Design
Highly Visible and in broad daylight
High-Resolution Video
Front Serviceable
Up to 100,000 Hour Lifespan
Impact Resistant
Custom Display Sizes and Shapes
Standard 16:9 aspect ratio sizes (approx.)
Indoor Usage (Outdoor Avail.)

Screen Depths: 4” Deep (10.2cm)
Cabinet Weight: Approx. 50 lbs (22.7 kg) ea.
LED Type: 3-in-1 SMD
Pixel Configuration: 1R1G1B
Max Brightness: 1,800cd/m² (Adjustable)
Drive Mode: 1/4 scan, constant current
View Angle H/V: 140/120 degrees
IP Rating: IP23
Refresh Rate: 3,000Hz
Frame Rate: 60 frames/s
